4-Port DVI KVM Switcher with Audio
4-port DVI KVM switcher
1、Description
4-port DVI KVM switcher is produced with high quality by Beijing HCSTCOM company designed with digital circuit solution. It could support 4 groups of DVI video, audio, mic, USB input with 1 group output. In addition it supports local USB2.0 input. The DVI KVM switcher is widely used in video conference, multimedia display control system, medical monitor system, projection system, remote command center control system of airports, train stations, electric power center and so on.
2、Feature：
Support 4-ch DVI input, 1-ch DVI output
Support audio Mic, USB keyboard and mouse
DVI video support max 1920X1200 resolution and compatible with lower
Support panel button control or keyboard hot key control
Support LED indication for switching status
Adapt 1U standard rack mount, optional DC 12V power supply
Work with our DVI KVM fiber or catx extender for remote transmission system
3、Specification
|
Name |
4-port DVI KVM Switcher |
|
Input |
4×DVI、4xAudio、4xMIC、4xUSB；1x U Disc |
|
Output |
1×DVI、1xAudio、1xMIC、2xUSB |
|
Video Standard |
SupportDVI1.0andHDMI1.3 |
|
Resolution |
1280*720、1280*1024、1920*1080 @60Hz、 up to 1920*1200@60Hz |
|
DVI cable |
Suggest5-10meter |
|
Hot Key |
Support |
|
U-disk |
USB2.0 standard, one port |
|
Size |
485*230*44.5mm(1U) |
|
Weight |
1500g |
|
Power supply |
AC220Vor DC12V |
|
Power Consumption |
10W |
|
Working Temp |
-10℃~50℃ |
|
Storage Temp |
﹣20℃~60℃ |
4、Product Picture

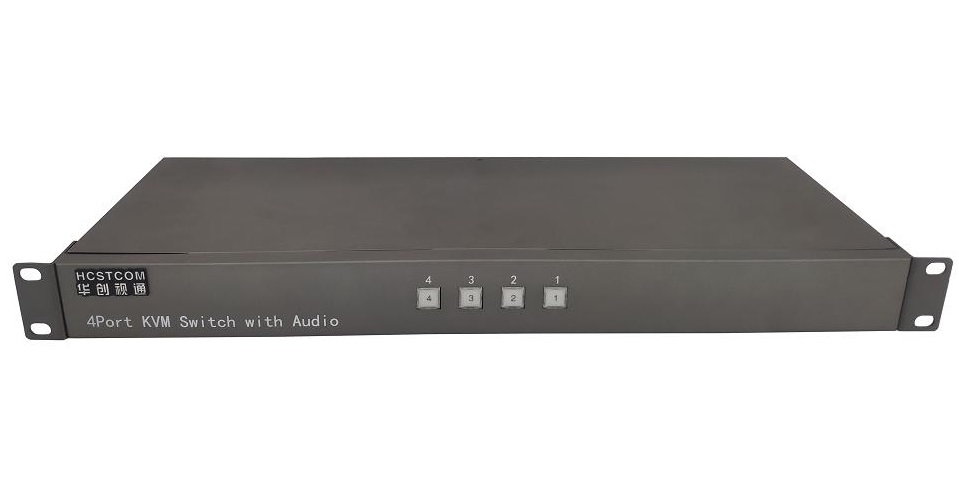

Front Panel

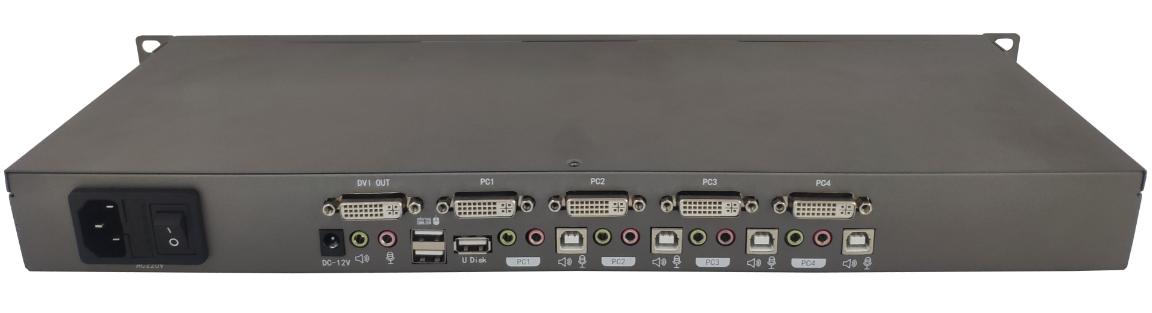

Rear Panel
5、Order Info：
Model：HC401DVI-KVM
Spec：Support 4-ch DVI input, 4-ch audio/mic input, 4-ch USB input, 1-ch USB for U-disk input, 1-ch DVI output, 1-ch USB output, 1-ch audio/mic output, 1U rack mount
