16CH 3G-SDI with Ethernet over Fiber

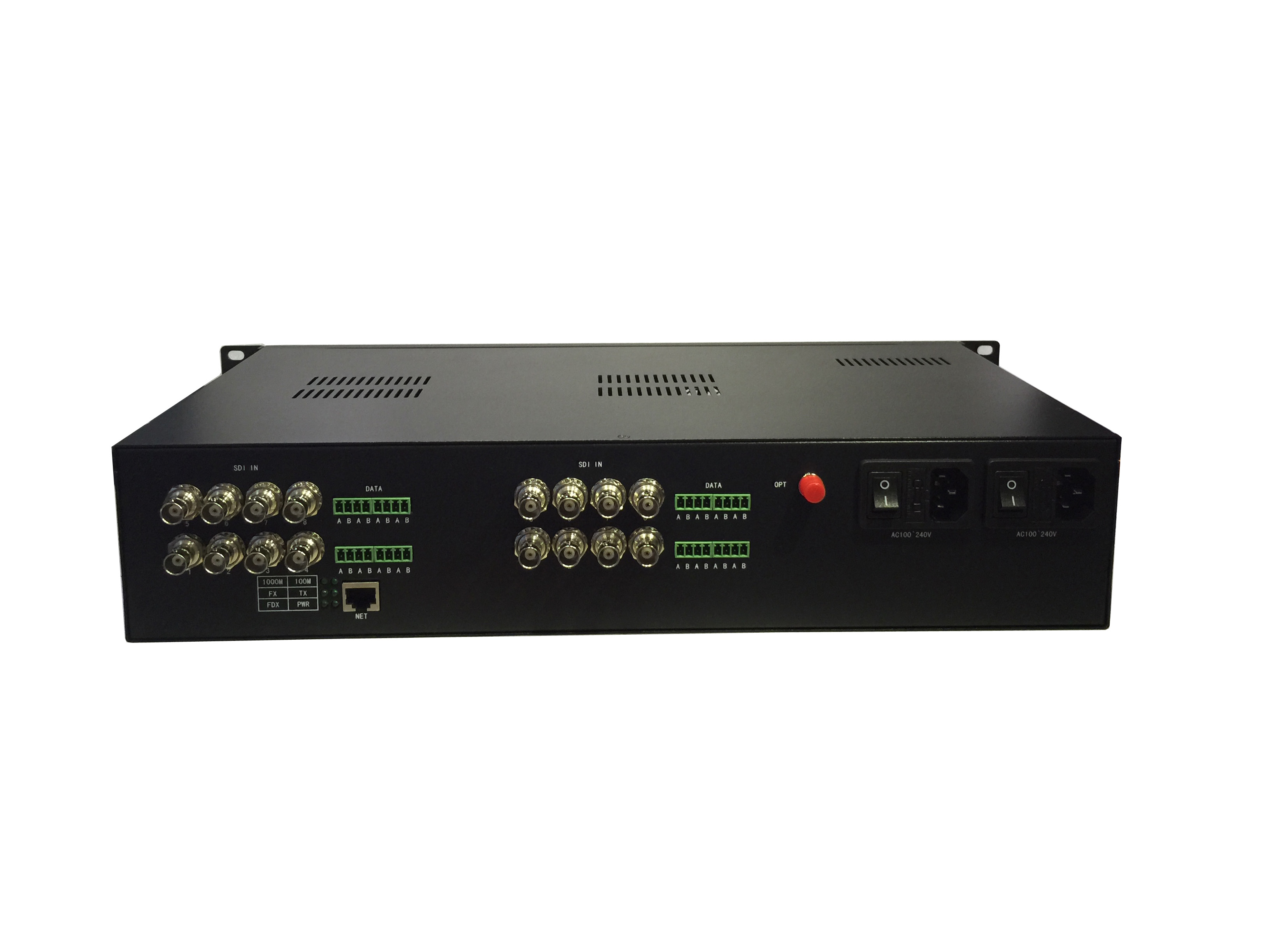

3G-SDI fiber optic transmitter

3G-SDI fiber optic transmitter
  • Product Introduction
  • 16-CH 3G-SDI fiber optic transmitter and receiver with Ethernet

    12G-SDI fiber optic transmitter and receiver,  3G-SDI fiber converter, 1-16 channels CWDM uncompressed SDI fiber optic extender,  HD-SDI to fiber extender,  SDI optical transceiver.  SDI extender over fiber .   we welcome any AV transmission OEM device

    1.  Overview

    This 16-channel 3G-SDI fiber optic transmitter and receiver extends 16 channels of 3G-SDI, HD-SDI, SD-SDI signals, 1-ch 1000M Ethernet over single core fiber optic cable.
    Our multiple SDI extender over fiber optic cable is all produced by TDM, DWDM, CWDM uncomressed solution so that we could do multiple SDI signal with
    data, external audio, Ethernet and other functions over single core fiber cable.Our SDI extenders could meet all broadcast TV transmission quality level. We welcome any OEM service.

    2.  Features

    16-channel unidirectional  3G-SDI , 1-ch 1000M Ethernet over single core fiber
    Compatible with HD-SDI, SD-SDI, ASI, TS Stream
    Range from 19.4Mb/s to 2.97Gb/s
    SMPTE 424/425M (2.97Gb/s) clock recovery
    Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
    Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
    100m automatic cable equalization, all the 2.97Gb / s rate below(Belden 1694A)
    Optional network management system
    LED status indicators monitor the critical parameters
    Support hot swap
    1U rack mount

    3.  Specifications

    a)  Serial TV, BNC input

    Signal standard: SMPTE 424/425M, 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom rate(19.4Mb/s - 2.97Gb/s)
    Input number: 16
    Reflection loss: >15DB
    Equilibrium: 0-100m @2.97Gb/s
    Connector: 75Ω BNC

    b)  Optics

    Channel: 1
    Type: single-mode (multimode optional)
    Wavelength: 1310nm /1550nm
    Reflection loss: > 15dB
    Dithering: < 0.2UI
    Connector: FC/PC ,ST/PC

    c)  Serial TV, BNC output (EO/OE)

    Channel: 16
    Signal level: 800mV nominal
    Rise/fall time: 200ps indication
    Overshoot: < 10% amplitude
    Reflection loss: >15dB
    Dithering: < 0.2UI
    Connector: 75Ω BNC

    d) Data Optional

    Channel: 1-4
    Data format: RS-485 (full/half duplex) and support NRZ, RZI and Manchester
    Data rate: DC to 100 Kb/s
    Mode: Full/half duplex
    Connector: wire connecting terminal

    e)  Power and environmental indication

    Operating temperature: 0°C~+50°C
    Pressure: 90VAC to 245VAC
    Power: 12 W
    EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
    Average time trouble-free: >100000 hours

    f)  Other
    Dimension: 1U standard rack
    Weight: 2Kg

    4.  Applications
    Remote OB Van/Truck Video Feeds;
    Broadcast Studio Camera Feeds;
    Long-haul Signal Transport;
    TV station/video conference;
    Lecture Hall Projector Connectivity;
    Medical/Surgical Room Broadcast;
    Small corporate campus video links

    5.   Ordering information

    3G/HD-SDI Fiber Optic Transmitter/Receiver
    HC4016P-T
    16-ch 3G-SDI/HD -SDI input, 1-ch 1000M Ethernet, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, 1U rack mount
    HC4016P-R

    16-ch 3G-SDI/HD -SDI output,1-ch 1000M Ethernet, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km,1U rack mount
