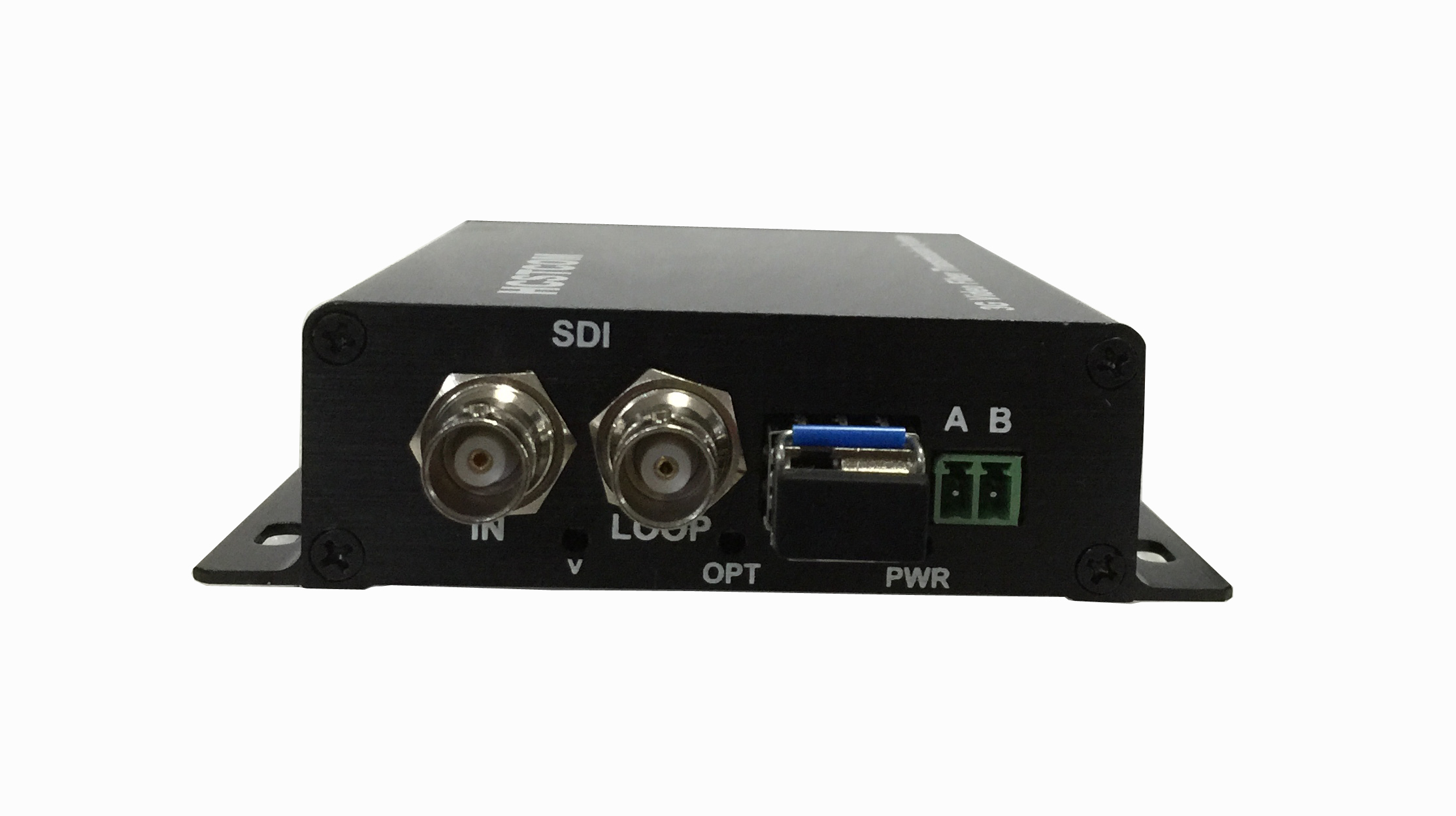

MINI ASI fiber optic transmitter and receiver

ASI fiber optic transmitter and receiver, ASI fiber converter, 1-64 channels CWDM uncompressed ASI fiber optic extender, ASI to fiber extender, ASI optical transceiver. ASI extender over fiber . we welcome any AV transmission OEM device

1. Overview

Our MINI ASI fiber optic transmitter and receiver could transmit 1-ch ASI , 1-ch reversed data RS485/RS422/RS232,
optional loop out in transmitter and receiver end over one fiber, single mode or multimode. Signals are equalized and re-clocked prior to fiber optic transmission.
The transmitter features a re-clocked and equalized ASI loop through; the receiver features two re-clocked and equalized ASI outputs

2. Features

1-channel unidirectional ASI I and 1-ch reversed RS485 optional over single core fiber
Compliant with the standard of DVB-ASI(EN50083-9)
Range from 19.4Mb/s to 270Mb/s
Auto adaption to the speed of SDI 143M,177M,270M,360M,540Mbps, or DVB-ASI
Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
100m automatic cable equalization, all the 2.97Gb / s rate below(Belden 1694A)
Optional network management system
LED status indicators monitor the critical parameters
Support hot swap
Stand-alone, 2U rack mount for 16 pcs of SDI fiber cards

3. Specifications

a) Serial TV, BNC input

Signal standard: SMPTE259M,SMPTE297M,SMPTE310, SMPTE305(SDTI), DVB-ASI(EN50083-9)
Input number: 1
Reflection loss: >15DB
Equilibrium: 0-200m @270Mb/s
Connector: 75Ω BNC

b) Optics

Channel: 1
Type: single-mode (multimode optional)
Wavelength: 1310nm /1550nm
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: LC/PC

c) Serial TV, BNC output (EO/OE)

Channel: 1, loop is optional
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.1UI
Connector: 75Ω BNC

d) Data

Channel: 1
Data format: RS-485 (full/half duplex) and support NRZ, RZI and Manchester
Data rate: DC to 100 Kb/s
Mode: Full/half duplex
Connector: wire connecting terminal

e) Power and environmental indication

Operating temperature: 0°C~+50°C
Pressure: 1A@12VDC
Power: 12 W
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours

f) Other
Dimension: 30mm ×105mm ×120mm
Weight: 2Kg

4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links

5. Ordering information

ASI Fiber Optic Transmitter/Receiver
HC2010MD-T
1-ch ASI input, 1-ch reversed RS485, single mode, single fiber, LC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 2U rack mount
HC2010-R

1-ch ASI output, 1-ch reversed RS485, single mode, single fiber, LC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 2U rack mount
